First Oil Containment Dome Shipped to Deepwater Horizon Spill

by , 05/05/10
filed under: Architecture, Water Issues

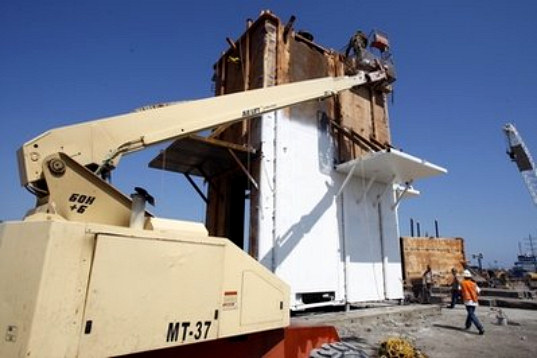

containment, oil leak, oil spill, Deepwater Horizon, BP, Gulf of Mexico, gulf coast oil spill, oil, containment cap, containment dome, water issues, environmental disaster, pollution, eco design, green designPhoto credit: AP Photo/Patrick Semansky

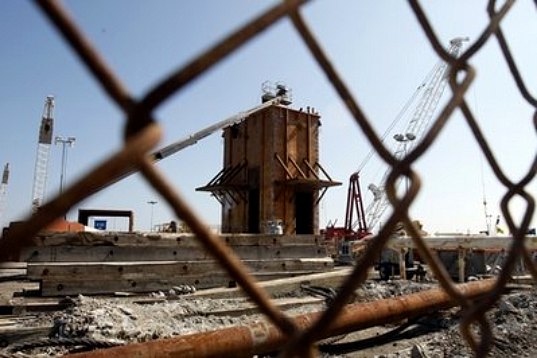

The first steel and concrete oil containment dome was finished yesterday and will be shipped off today to the site of the massive Deepwater Horizon oil leak. The hope is that the cap can be installed over the largest of the leaks, and the oil will then move through a 5,000 ft riser up to the surface into the holding tank of a ship. If all goes as planned, this containment cap will be able to collect about 85% of the oil gushing up from the sea floor.

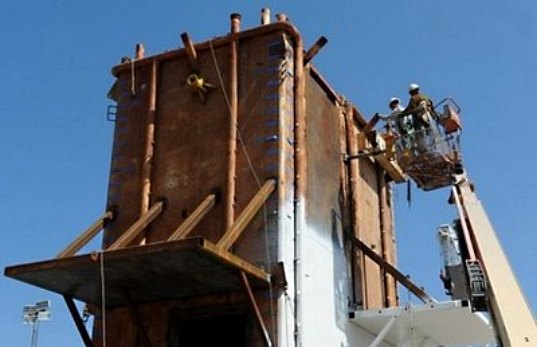

containment, oil leak, oil spill, Deepwater Horizon, BP, Gulf of Mexico, gulf coast oil spill, oil, containment cap, containment dome, water issues, environmental disaster, pollution, eco design, green design,Photo credit: Superior Energy

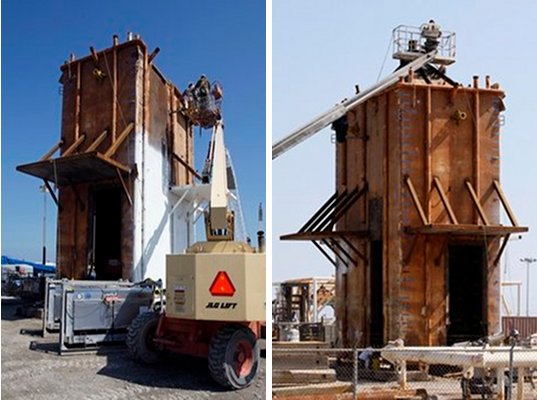

It’s not really quite what we had envisioned the containment dome would look like. Domes are more round and spherical, but this is more like a cap. BP has been working with Wild Well Controls Inc. to build this system, modeled on other structures used to control leaks after Hurricane Katrina — however this is the first time a system like this has been tried at this depth. The containment cap is composed of 125 tons of steel and concrete (14’ x 24’ x 40) and will be lowered onto the site of the largest leak, which is about 600 feet from the wellhead. Assuming the cap is sound and that the seabed below is not too soft, it should create a tight seal, containing the oil inside.

From there, a 5,000 ft riser attached to the cap will transport the leaking oil up to a storage ship. The storage ship, called the Deepwater Enterprise, can separate the oil from water and gas, and temporarily store it before it is offloaded and shipped to a designated oil terminal onshore. Around 139,000 barrels can be stored on the ship and about 15,000 barrels of oil can be processed a day. A support barge capable of holding 137,000 barrels will also be deployed to help the effort. Installation of the cap is expected within the next three to six days. Two more caps were expected to be built in order to trap the leak and keep more oil from spreading into the ocean, but one valve was shut off in the last day, leaving just two leaks now.

Via GOOD, Yahoo News! and The Oil Drum

photo credits: ©AP Photo and Superior Energy

Related Posts

LEAVE A COMMENT

or your inhabitat account below

Let's make sure you're a real person:


4 Comments

  1. mirrar May 22, 2010 at 6:02 am

    The crimping souds like a good option,Maybe back it up with a concenteena type duct (much like expandable aircon ducts used on building sites except put weight on the bussiness end and floats on top)Hopfefully the duct would pool the oil so as it could be collected.I realise currents and weather would be major issues but I was thinking this system might add another string to the bow.I wish all concerned the greatest success.

  2. John C Fairfax May 18, 2010 at 1:29 am

    Crimp the pipe. Squash the pipe with over-sized crimping pliers. See “crimping pliers” at: http://en.wikipedia.org/wiki/Crimp

    Crimping pipe may considered tacky or a poor way of shutting off a leaking pipe but it works. The better the crimp the better the blockage.

    Lock an over-sized hydraulic crimping tool in place. It might reduce the Gulf of Mexico leak to an absolutely negligible dribble.

  3. 8412cqf2 May 6, 2010 at 5:59 am

    why do they not stock containtment domes to react immediately in case of a blow-out under water?

    cor quist
    rotterdam

  4. Lorem May 5, 2010 at 2:33 pm

    I remember on the mid 80´s about this bacteria that was created for this purpose, and this bacteria supposedly could eat oil… ¿what happened with that?
