Gallery: Is Rafael Viñoly’s $44.3 Million Firstsite Arts Center Green?

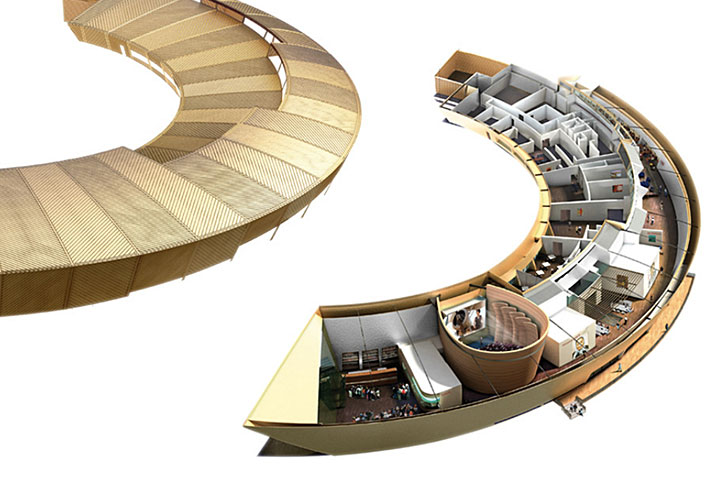

A diagram of the interior of the center.
A diagram of the interior of the center.

Although RVA made an effort to achieve a BREEAM rating for the arts center, because the new 2010 requirements are more stringent than the earlier standards they were aiming for, they were not successful. However, they did recycle 24,000 tons of fill taken from a demolition project that occurred simultaneously with the construction of First Site’s foundations, and the Pittsburgh Corning FOAMGLAS insulation is made from recycled glass.

A sophisticated underfloor plenum ventilation system combined with distributed mechanical plants that reduces duct runs (versus a centralized room) facilitates substantial energy servings. And, as we noted previously, the building is so well-lit naturally that it is unnecessary to use artificial lighting during daylight hours. All of the timber used within the building is FSC certified, and the golden envelope metal is also made of recycled materials. The concrete used contains blast furnace slag, which is basically a re-used by-product of iron and steel production, and much of the waste generated during construction, including both metal and plasterboard, was recycled.

Finally, in order to protect the Scheduled Ancient Monument, RVA opted for a single volume that did not require deep foundations. This means that in the future, if the building has to be demolished, it will be easy to remove and recycle the existing materials, further reducing the overall amount of waste generated by this project. So, you be the judge? Is the Firstsite Arts Center a golden blunder or is it a sterling achievement in sustainable design?

+ Rafael Viñoly Architects

photos by Richard Bryant, and renderings by Rafael Viñoly Architects and Hayes Davidson


or your inhabitat account below

1 Comment

  1. Hamiltonandy October 17, 2011 at 6:06 pm

    Contrary to the article lighting is used even during good daylight. The original concealed lighting has been mostly replaced by spotlamps. The fluorescent light fittings in some rooms are very intrusive. Who would put a three pin socket on the ceiling!
    This carbuncle is, despite assertions by Colchester Council, structurally deficient. The building desiogn was too complex to computer model properly. So to stop the roof sagging near the entrance lots of reinforcement was needed.
    The allegedly corrosion proof ali/copper roof is somewhat vulnerable to the weather and any iron fillings corrode it. The iron originally came from the roof installers using steel tools.
    The majority of locals opposed it even before it was built. Now it has cost £28million to build of public money, plus a £1.2million annual public subsidy, very few look forward to seeing this mostrosity defacing our historic town.
