Engineers at Columbia University have created a “solar fuels rig,” which floats on the ocean, captures solar energy, then uses that energy to extract hydrogen from seawater. Hydrogen is a clean source of energy, though methods to extract it have often proven too costly or energy intensive to be viable. A typical hydrogen extraction system uses water electrolysis, in which H2 and O2 are separated by sending an electric current through water and divided by a membrane, which is usually very delicate. The new floating solar rig does not use a membrane, which makes it resilient enough to deploy on the open ocean.

Continue reading below
Our Featured Videos

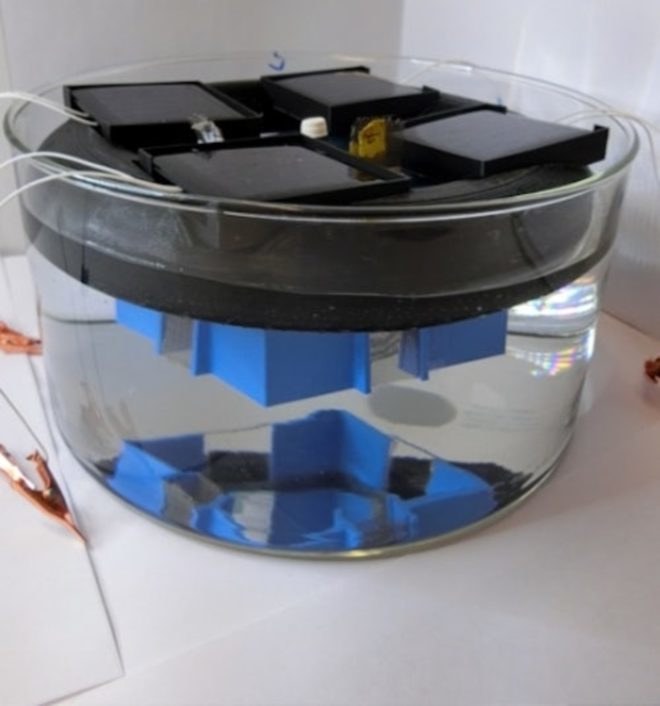

floating solar rig, seawater solar rig, floating solar rig hydrogen, model floating solar rig. lab model

The lack of a membrane is an important design feature that facilitates a more effective extraction system. “Being able to safely demonstrate a device that can perform electrolysis without a membrane brings us another step closer to making seawater electrolysis possible,” said Jack Davis, co-author of a scientific paper on the device published in the International Journal of Hydrogen Energy. “These solar fuels generators are essentially artificial photosynthesis systems, doing the same thing that plants do with photosynthesis, so our device may open up all kinds of opportunities to generate clean, renewable energy.”

Related: Affordable new device uses solar energy to produce hydrogen and electricity

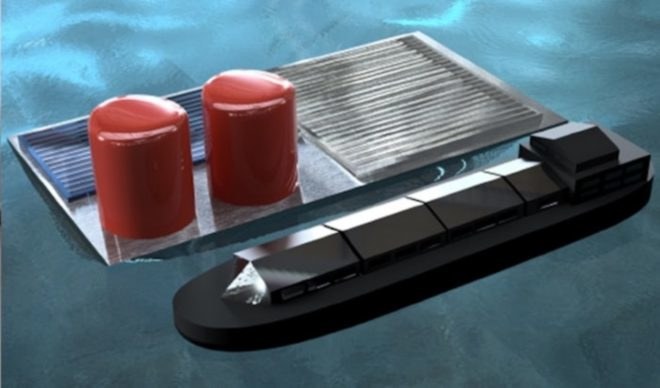

floating solar rig, seawater solar rig, floating solar rig hydrogen, model floating solar rig

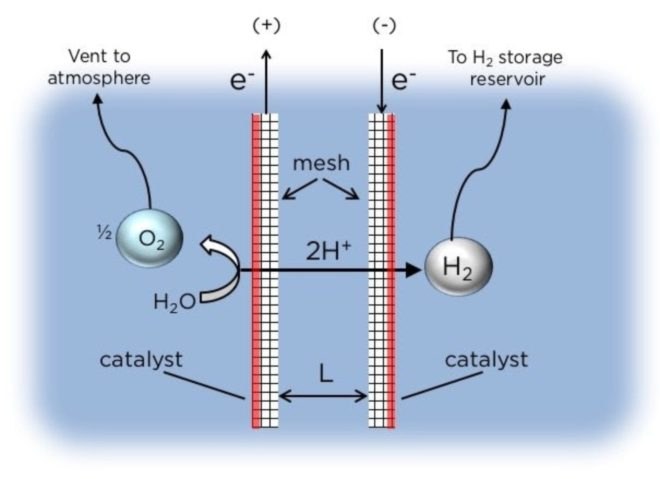

Rather than incorporate a membrane, the device uses an asymmetrical mesh structure in which electrodes, coated with a catalyst on one side, collect bubbles of either hydrogen or oxygen. Once the bubbles are large enough, they are pulled into separate collection chambers. Although the team has yet to test its design on actual seawater, they feel confident in the process. “We are especially excited about the potential of solar fuels technologies because of the tremendous amount of solar energy that is available,” said Daniel Esposito, lead researcher on the project. “Our challenge is to find scalable and economical technologies that convert sunlight into a useful form of energy that can also be stored for times when the sun is not shining.”

+ Columbia University

Via New Atlas

Images via Jack Davis/Columbia University, Justin Bui/Columbia University and Daniel Esposito/Columbia University
