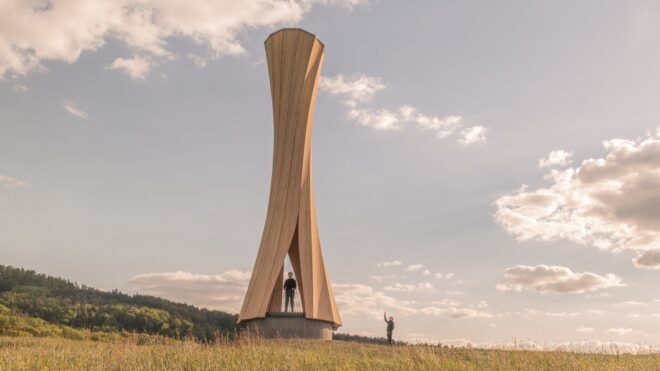

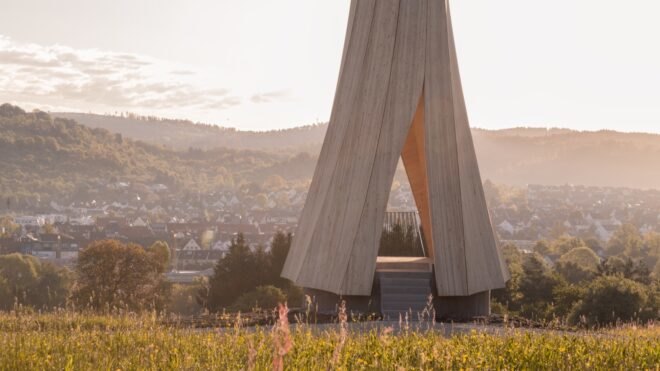

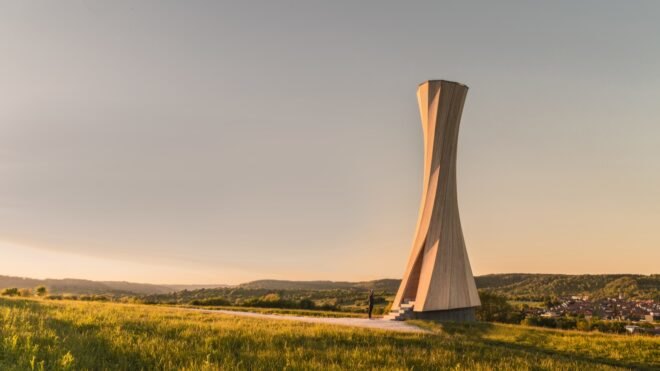

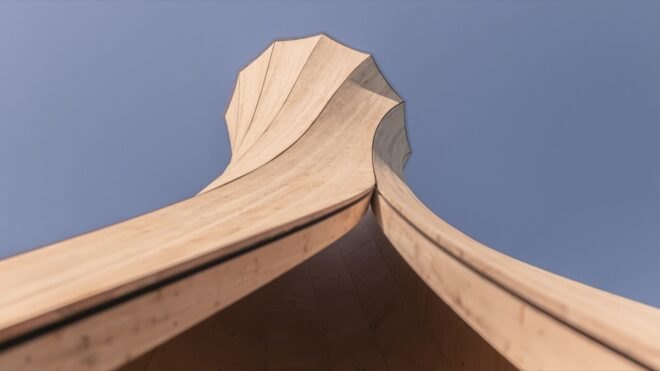

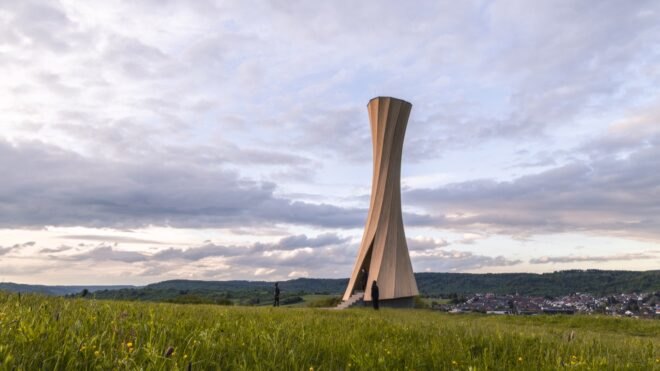

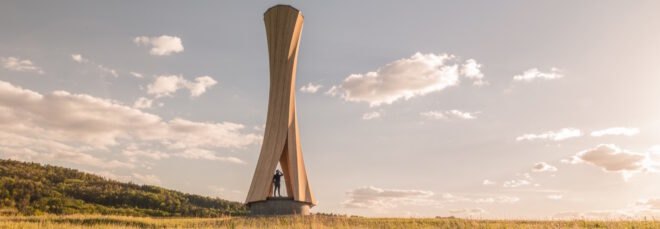

Wood warping typically creates unwanted and undesirable effects, yet the creators behind a unique new landmark in Urbach, Germany have found a way to harness the naturally occurring deformity into an unexpected architectural possibility. The University of Stuttgart completed a nearly 47-foot-tall timber structure that gets its curvaceous form from the “self-shaping process” of its curved wood components. Constructed from spruce wood cross-laminated panels, the Urbach Tower is the first wood structure made from self-shaped components and offers a more sustainable alternative to energy-intensive, mechanically formed structures.
Created as one of 16 architecture-designed installations for the Remstal Gartenschau 2019, the Urbach Tower offers high performance and strength with low environmental impact. The landmark building’s prefabricated, self-shaping components are made from spruce wood CLT sourced regionally from Switzerland and CNC cut into 12 flat panels that deform autonomously into predicted curved shapes when dried. Computational models were developed to design, predict and optimize the material arrangement that would achieve the desired look through moisture-induced swelling and shrinking.
“The Urbach Tower is the very first implementation of this technology on building-scale, load-bearing timber parts,” the designers said in a press release. “The distinctive form of the tower constitutes a truly contemporary architectural expression of the traditional construction material wood. It celebrates the innate and natural characteristics of self-shaped wood in its upward spiraling shape.”

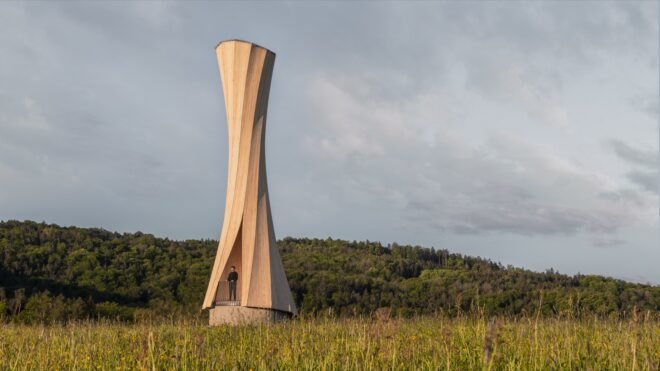

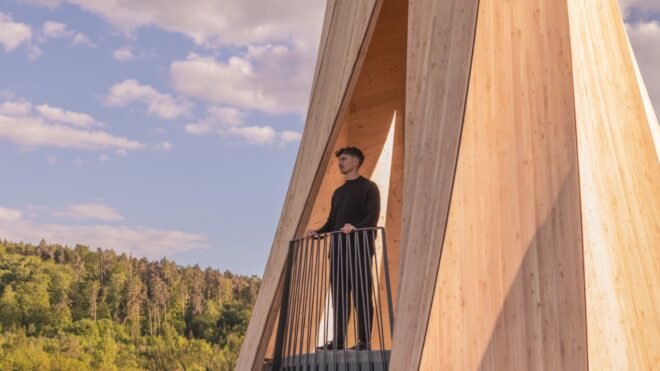

The design team also clad the tower in a custom-made protective layer of glue-laminated larch with a titanium oxide surface treatment to protect the wood from UV radiation and pests. Four craftsmen assembled the tower in a single working day without the need for extensive scaffolding or formwork. The Urbach Tower, which is a permanent installation, serves as shelter, a landscape overlook and a showcase for efficient, economical and expressive wood architecture.
Images via University of Stuttgart
