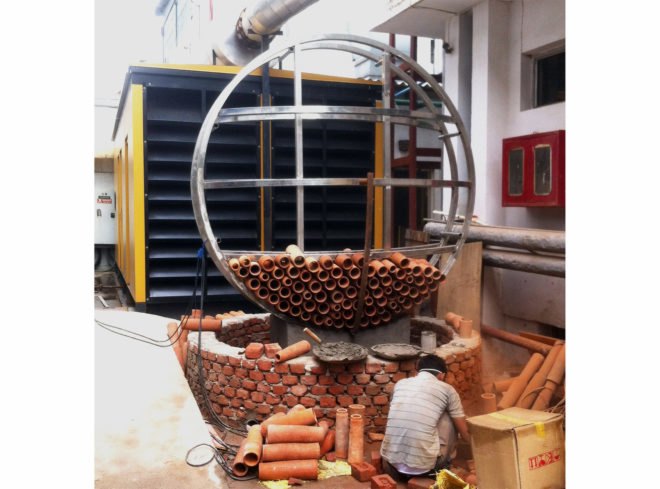

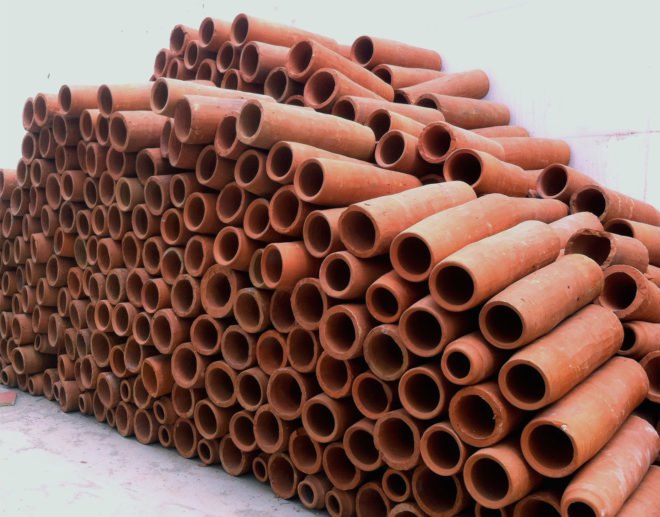

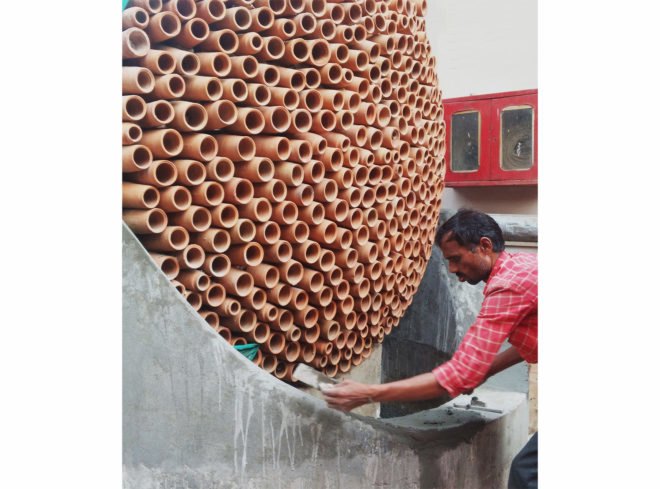

New Delhi-based Ant Studio made a zero-electricity air conditioner to combat the brutally hot summers in India’s capital. Built for a DEKI Electronics factory, this low-tech, energy efficient, and artistic solution to the sweltering heat harnesses the power of evaporative cooling. The innovative honeycomb-like installation is made with conical clay tubes that naturally reduce the surrounding temperature.

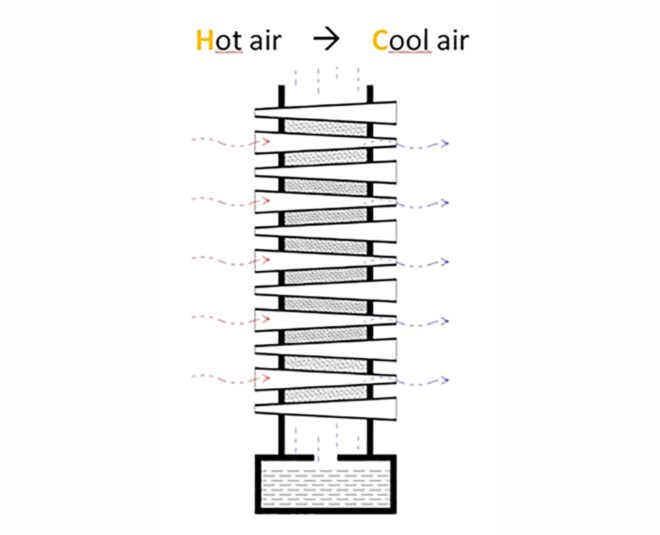

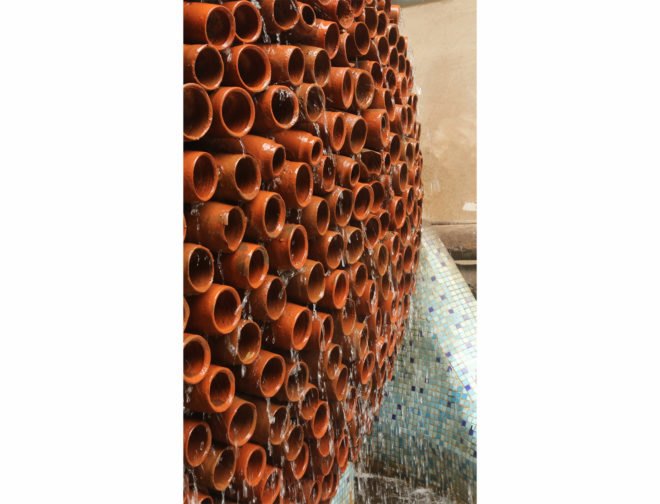

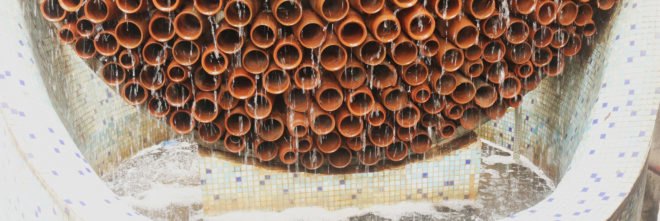

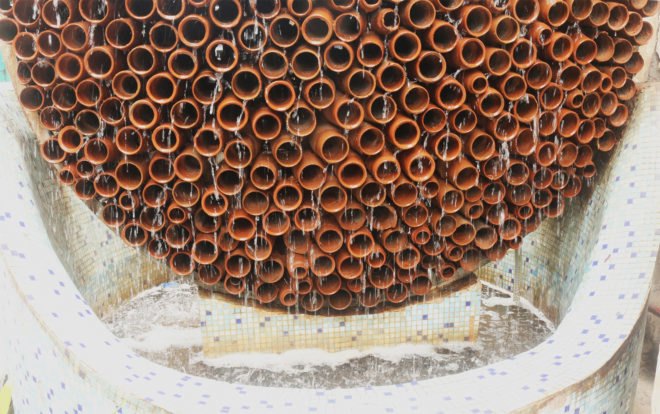

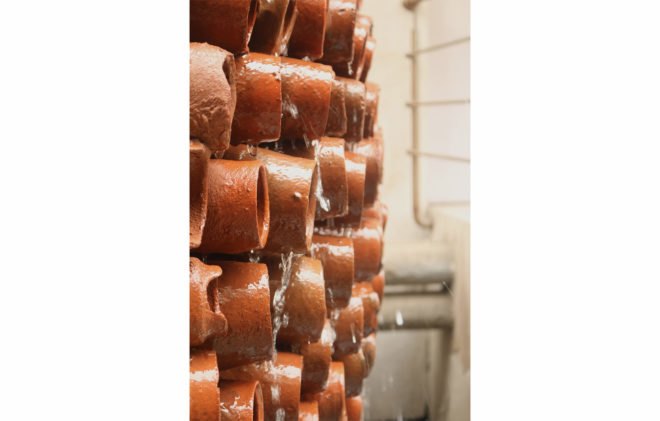

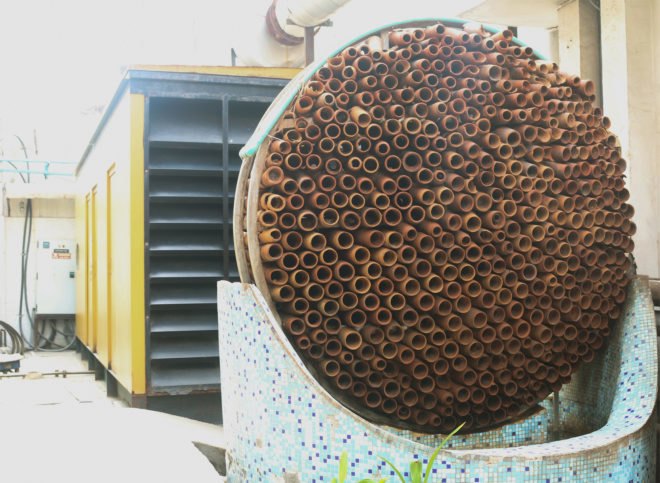

Built as part of a larger beautification project for DEKI Electronics, the innovative cooling installation is highly functional and adds an artistic flair to the factory. The shape and size of the beehive-inspired structure’s densely packed terra-cotta cones were determined using advanced computational analysis and modern calibration techniques. When water runs down the structure—it’s sufficient to wet the cones just once or twice a day—the process of evaporation gradually lowers the air temperature. The porous terra-cotta units absorb water that then seeps to the outer surface where it evaporates and turns into cold air. The flow of water empties out into a collection basic and gives the installation a beautiful waterfall effect.
“I believe this experiment worked quite well functionally. Findings from this attempt opened up a lot more possibilities where we can integrate this technique with forms that could redefine the way we look at cooling systems, a necessary yet ignored component of a building’s functionality. Every installation could be treated as an art piece”, said Monish Siripurapu, founder of Ant Studio. “The circular profile can be changed into an artistic interpretation while the falling waters lend a comforting ambience. This, intermingled with the sensuous petrichor from the earthen cylinders, could allow for it to work in any environment with the slightest of breeze.”
The prototype is capable of cooling hot air at above 50 degrees Celsius (122 degree Fahrenheit) to temperatures of less than 36 degree Celsius around the structure, while atmospheric temperature drops to 42 degrees Celsius. The architects see the honeycomb-shaped installation as a scalable low-tech solution for natural cooling, as well as an art installation that incorporates ancient craft methods.
